Kinedyne Pair Series L Pear Triple Stud Securement Points

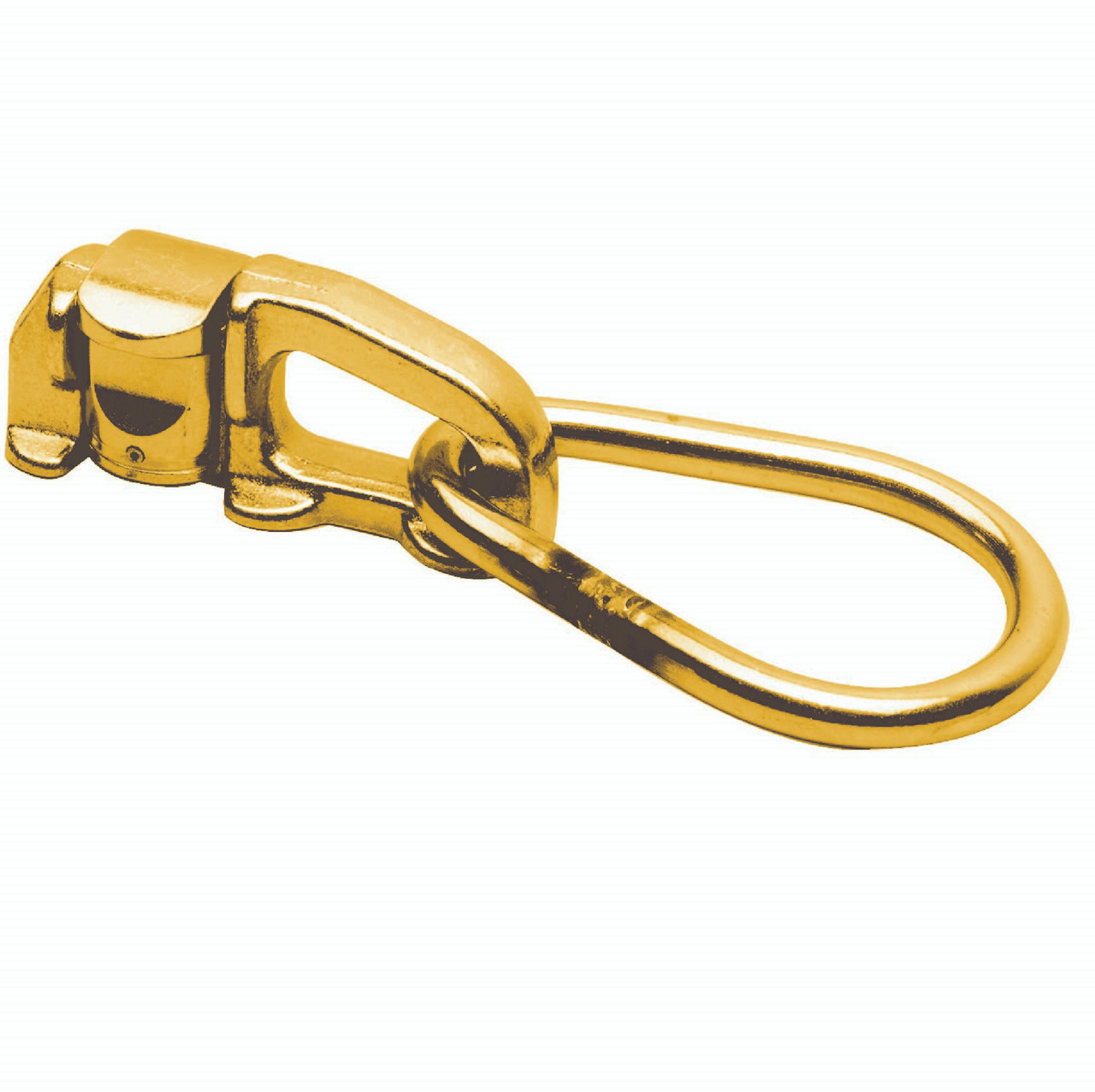

Pair of Series L Triple Stud Securement Point Fittings w/ Pear Rings

Product Code:

32507-2PK

UPC Code:

52474018586

Have Questions?

Fill out the form below

For the tie down job that calls for extra strength and extra security, Kinedyne is offering a package of two durable Series L Heavy-Duty Triple Stud Securement Point Fittings with Pear Shape Rings.

Pair of Series L Triple Stud Securement Point Fittings w/ Pear Rings

Create reliable tie down points in seconds with Kinedyne's convenient package of two Series L Heavy-Duty Triple Stud Securement Point Fittings with Pear Shape Rings. Manufactured for durability and engineered for strength, our Triple Stud anchor points are designed to easily handle the tougher tie down jobs while the Pear Shape Ring is wide enough to accommodate different types of hooks and straps for a reliably secure tie down job. Our heat-treated carbon steel Securement Point Fitting can handle the heavy-duty jobs with a working load limit of 2,000 Lbs. / 910 Kgs. at both 0 degrees and 45 degrees and a working load limit of 1,670 Kgs. / 757 Kgs. at 90 degrees.

Pair of Series L Triple Stud Securement Point Fittings w/ Pear Rings – 32507-2PK Quick Specs: 

0 Degree Working Load Limit: 2,000 Lbs. / 910 Kgs.
45 Degree Working Load Limit: 2,000 Lbs. / 910 Kgs.
90 Degree Working Load Limit: 1,670 Lbs. / 757 Kgs.
Series Type: Series L Fitting
Overall Height: 3.36 Inches
Overall Width: 2.06 Inches
Overall Length: 2.03 Inches
Type of Ring: 4.90 Inches
Height of Ring: Pear Shape Ring Standard
Thickness of Ring: 2.3 Inches
Length of Ring: 0.25 Inch
Type of Stud Bolt: 2.06 Inches
Weight: 0.78 Lbs. / 0.35 Kgs.

Specifications

0° Breaking Strength (kgs):	2722
0° Breaking Strength (lbs):	6000
0° Working Load Limit (kgs):	907
0° Working Load Limit (lbs):	2000
45° Breaking Strength (kgs):	2722
45° Breaking Strength (lbs):	6000
45° Working Load Limit (kgs):	907
45° Working Load Limit (lbs):	2000
90° Breaking Strength (kgs):	2272
Country of Origin:	China
90° Breaking Strength (lbs):	5010
90° Working Load Limit (kgs):	757
90° Working Load Limit (lbs):	1670
Height of Ring (inches):	2.3
Finish:	Zinc Plated
Hole Included:	False
Color:	Gold Chromate
PROPOSITION 65:	No
Material:	Heat Treated Carbon Steel
Ring Included:	False
Kinedyne Anchoring Kits used with:	15522, 15523
Kinedyne Track used with:	15544,15545, 15546, FE750-01-PD4, FE751-01-PD4, FE752-01-PD4
Overall Height (inches):	3.3
Overall Length (inches):	4.9
Overall Width (inches):	2
Series E or Series A Fitting:	False
Length of Ring (inches):	2.06
Series L Fitting:	True
Series Type:	Series L Fitting
Specification Met:	WSTDA-T-1 (Web Sling Tie-Down Association-T-1)
Shipping Days:	3-5
Note for Breaking Strength (added as a warning 1):	notes-all-securement-point-assembly-rating
Thickness of Ring (inches):	0.25
Weight (kgs):	31
UPC Code:	52474018586
Weight (lbs):	7
Stud Bolt Included:	False
Stud Nut Included:	False

Packaging

Skid - GTIN:	20052474018580
Skid - Standard Pack Quantity:	9
Skid - Unit Quantity:	90
Standard Pack - GTIN:	10052474018583
Standard Pack - Unit Quantity:	10
Unit Packaging:	2 Per Pack - Bag & Tag

Notices & Warnings

Warning English:	WARNING: Series E,A or F fittings are designed for use with Kinedyne Logistic Track. Load ratings may be reduced when used with other tracks or if the track fitting is not positively engaged. Your cargo control system is only as strong as its weakest link. All ratings for series E and A fittings are based on use with Kinedyne 11 gauge track. NOTE: Several types of Kinedyne track are not made with 11 gauge steel, contact Customer Service for specifications by part number.
Warning French:	AVERTISSEMENT: Les raccords de série E,A ou F sont conçus pour être utilisés avec les rails Logistique de Kinedyne. La capacité de charge peut être réduite lorsque ces raccords sont utilisés avec d’autres rails ou lorsque le raccord n’est complètement verrouillé. Votre système d’arrimage est aussi fort que son maillon le plus faible. Les cotes de classement des raccords de série E etA sont basées sur une utilisation avec les rails Kinedyne de calibre 11. NOTE: Plusieurs types de rail Kinedyne ne sont pas faits d’acier de calibre 11, communiquez avec le service à la clientèle pour les spécifications selon le numéro de pièce.
Warning Spanish:	ADVERTENCIA: Los accesorios de las series E, A y F, están diseñados para utilizarse específicamente con el riel logístico de Kinedyne. Los valores de carga pueden reducirse al utilizar otros rieles o bien, si los accesorios de los rieles no están correctamente enganchados. Su sistema de control de carga es tan fuerte solo como su eslabón más débil. Todos los valores de los accesorios de serie E y A, están basados en su uso con el riel de calibre 11 de Kinedyne. NOTA: Kinedyne cuenta con varios tipos de rieles que no están hechos de acero de calibre 11, por lo que es recomendable contactar a nuestro servicio al cliente para obtener las especificaciones en base al código del producto.
