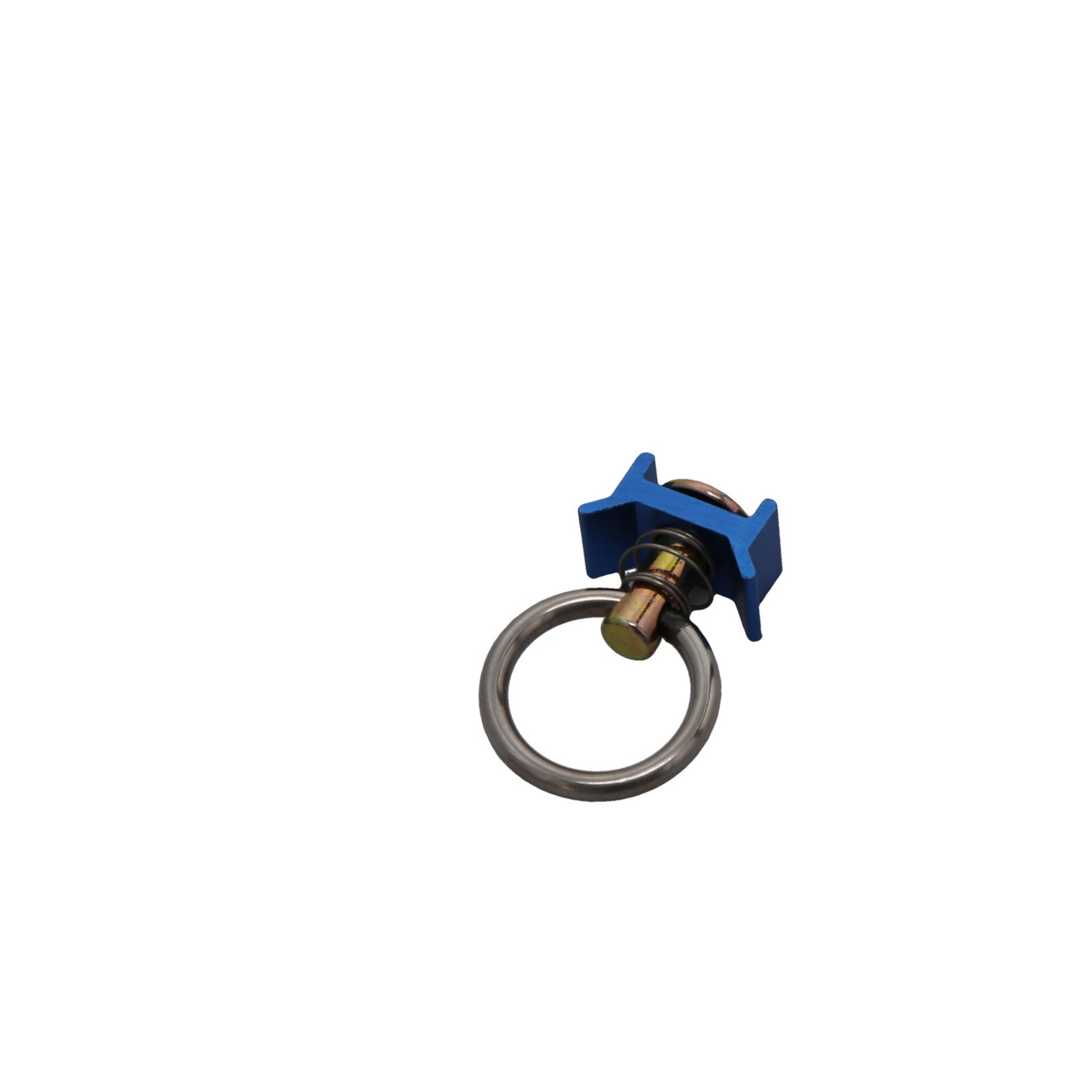

Series L Single Stud Securement Point Fitting w/ Ring

Series L Single Securement Point Fitting w/ Ring

Kinedyne's Series L Single Securement Point Fitting with Ring is engineered with the optimal strength and optimal durability you need for a reliable and secure anchor point for your Logistic Track. This heat-treated carbon steel Securement Point Fitting is equipped with a wide ring that can be used with a variety of different end fittings and straps. Engineered with a simple spring mechanism, our anti-corrosion zinc plated anchor point can be quickly and easily inserted and removed from the Logistic Track in a matter of seconds. Once it's installed, you'll be able to experience the strength of a secure tie down point. This Securement Point Fitting with Ring can handle a working load limit of 1,335 Lbs. / 605 Kgs. at 0 degrees and a working load limit of 1,000 Lbs. / 455 Kgs. at 45 and 90 degrees.

Series L Single Stud Securement Point Fitting w/ Ring – 32401 Quick Specs:

• 0 Degree Working Load Limit: 1,335 Lbs. / 605 Kgs. 
• 45 Degree Working Load Limit: 1,000 Lbs. / 455 Kgs.
• 90 Degree Working Load Limit: 1,000 Lbs. / 455 Kgs.
• Series Type: Series L Fitting 
• Overall Height: 2 Inches
• Overall Width: 0.63 Inch
• Overall Length: 1.2 Inches
• Type of Ring: 1 Inch Ring Standard
• Height of Ring: 1.56 Inches
• Thickness of Ring: 0.19 Inch
• Length of Ring: 1.56 Inches
• Weight: 0.09 Lbs. / 0.04 Kgs.
